H861 (86 mm)- 1.8 ° por paso, 2/4 fase
I.CH

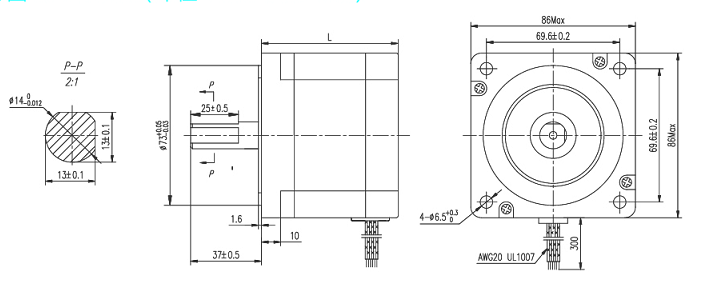

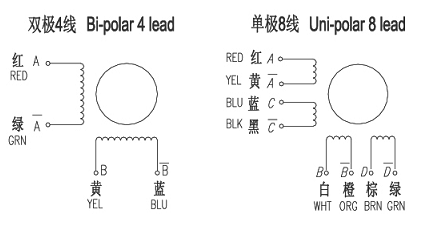

Nema 34 Stepping Motor
| Especificación eléctrica | |||||||||
| Modelo | Ángulo de paso (o) | L (mm) | Corriente nominal (a) | Fase Resistencia (Ω) | Fase Inductancia (MH) | Torque de retención (N.CM) | Torque de retención (N.CM) | Guiar Cable (NO.) | Motor Peso ( kg) |
| H861-22040 | 1.8 | 66 | 4.0 | 0.6 | 1.6 | 220 | 5.5 | 8 | 2.0 |
| H861-22050 | 1.8 | 66 | 5.0 | 0.4 | 1.0 | 220 | 5.5 | 8 | 2.0 |
| H861-22027 | 1.8 | 66 | 2.7 | 1.2 | 3.5 | 220 | 5.5 | 8 | 2.0 |
| H861-30040 | 1.8 | 78 | 4.0 | 0.7 | 3.0 | 300 | 6.5 | 8 | 2.5 |
| H861-30050 | 1.8 | 78 | 5.0 | 0.5 | 1.8 | 300 | 6.5 | 8 | 2.5 |
| H861-30027 | 1.8 | 78 | 2.7 | 1.6 | 5.6 | 300 | 6.5 | 8 | 2.5 |
| H861-49040 | 1.8 | 98 | 4.0 | 0.98 | 4.1 | 490 | 9.5 | 8 | 3.0 |
| H861-49050 | 1.8 | 98 | 5.0 | 0.65 | 2.4 | 490 | 9.5 | 8 | 3.0 |
| H861-49027 | 1.8 | 98 | 2.7 | 1.9 | 8.6 | 490 | 9.5 | 8 | 3.0 |
| H861-58040 | 1.8 | 114 | 4.0 | 1.1 | 5.5 | 580 | 12.5 | 8 | 3.5 |
| H861-58050 | 1.8 | 114 | 5.0 | 0.75 | 3.2 | 580 | 12.5 | 8 | 3.5 |
| H861-58027 | 1.8 | 114 | 2.7 | 2.0 | 11.5 | 580 | 12.5 | 8 | 3.5 |
| H861-64040 | 1.8 | 126 | 4.0 | 1.3 | 5.8 | 640 | 18.5 | 8 | 1.8 |
| H861-64050 | 1.8 | 126 | 5.0 | 0.85 | 3.4 | 640 | 18.5 | 8 | 1.8 |
| H861-64027 | 1.8 | 126 | 2.7 | 2.5 | 12.5 | 640 | 18.5 | 8 | 1.8 |
| H861-85040 | 1.8 | 150 | 4.0 | 1.4 | 9.2 | 850 | 24.5 | 8 | 4.2 |
| H861-85050 | 1.8 | 150 | 5.0 | 0.9 | 5.2 | 850 | 24.5 | 8 | 4.2 |
| H861-85027 | 1.8 | 150 | 2.7 | 2.9 | 17.5 | 850 | 24.5 | 8 | 4.2 |
| Curva de torque extraída |

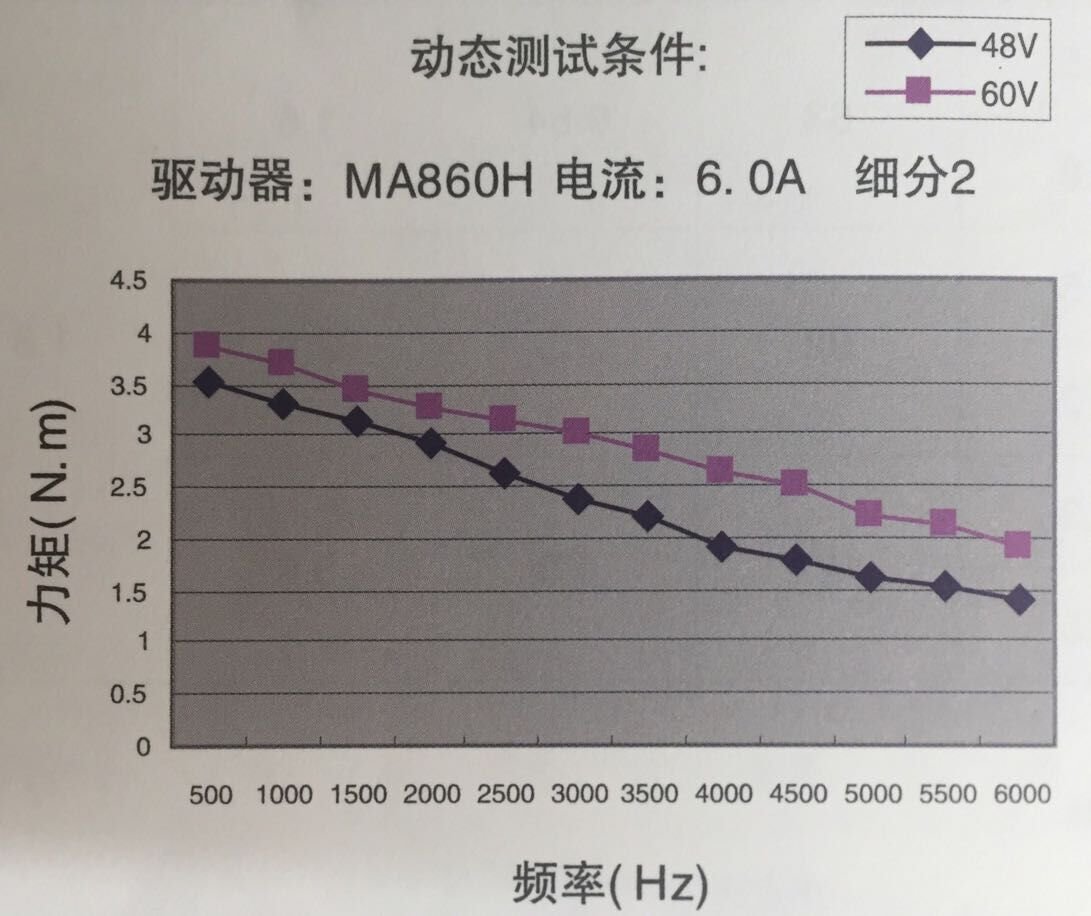

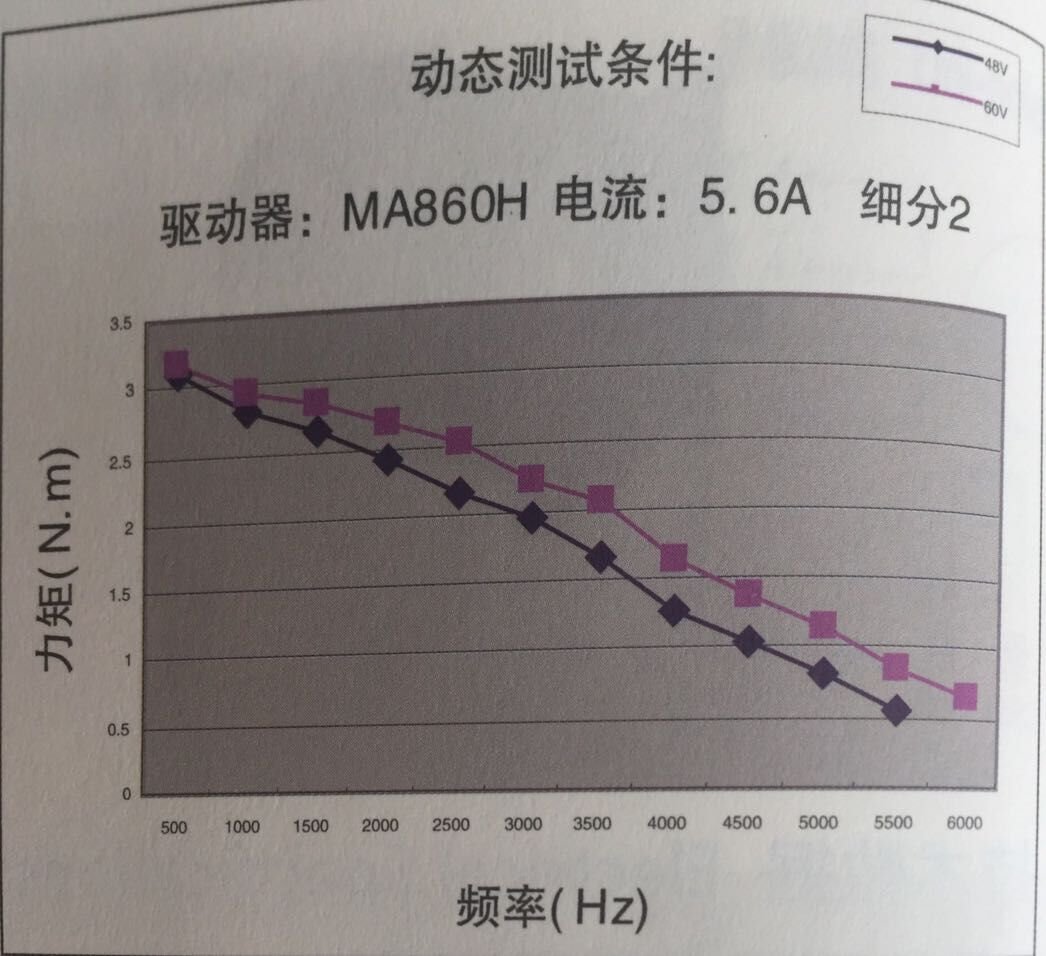

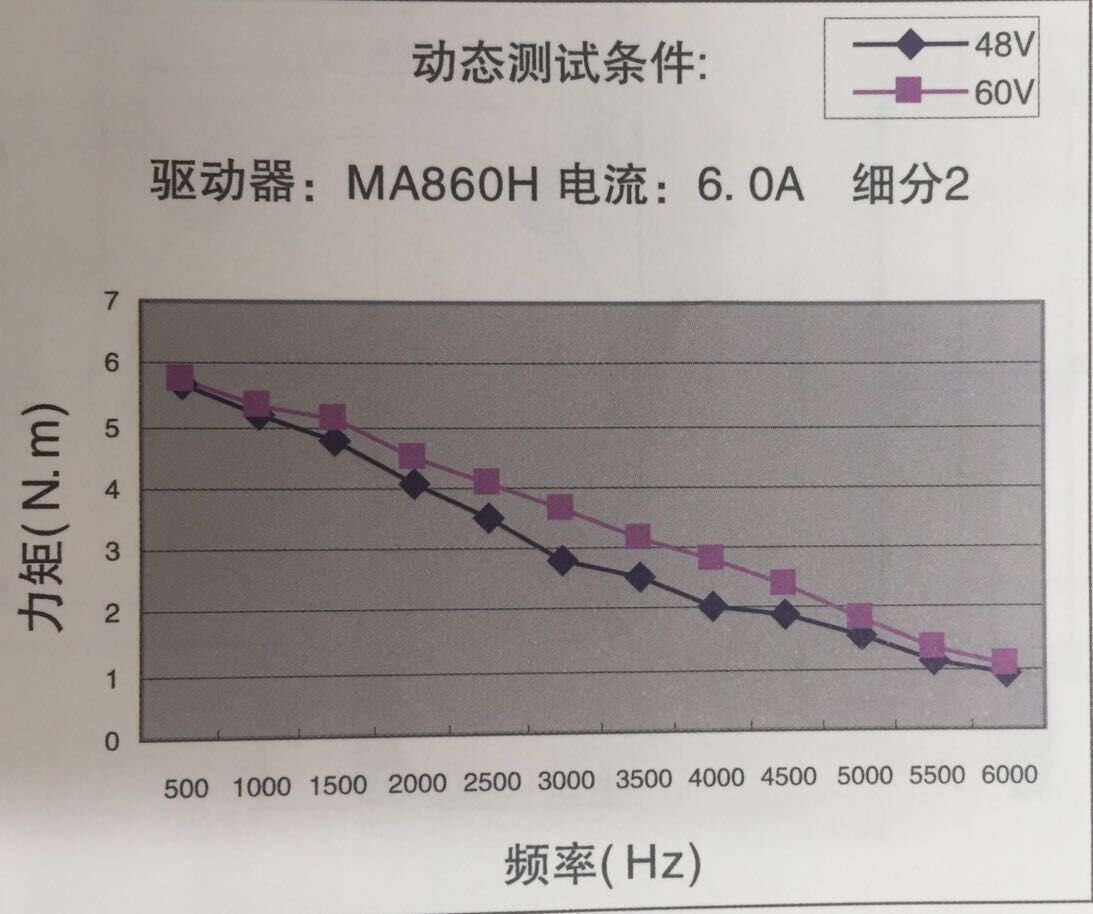

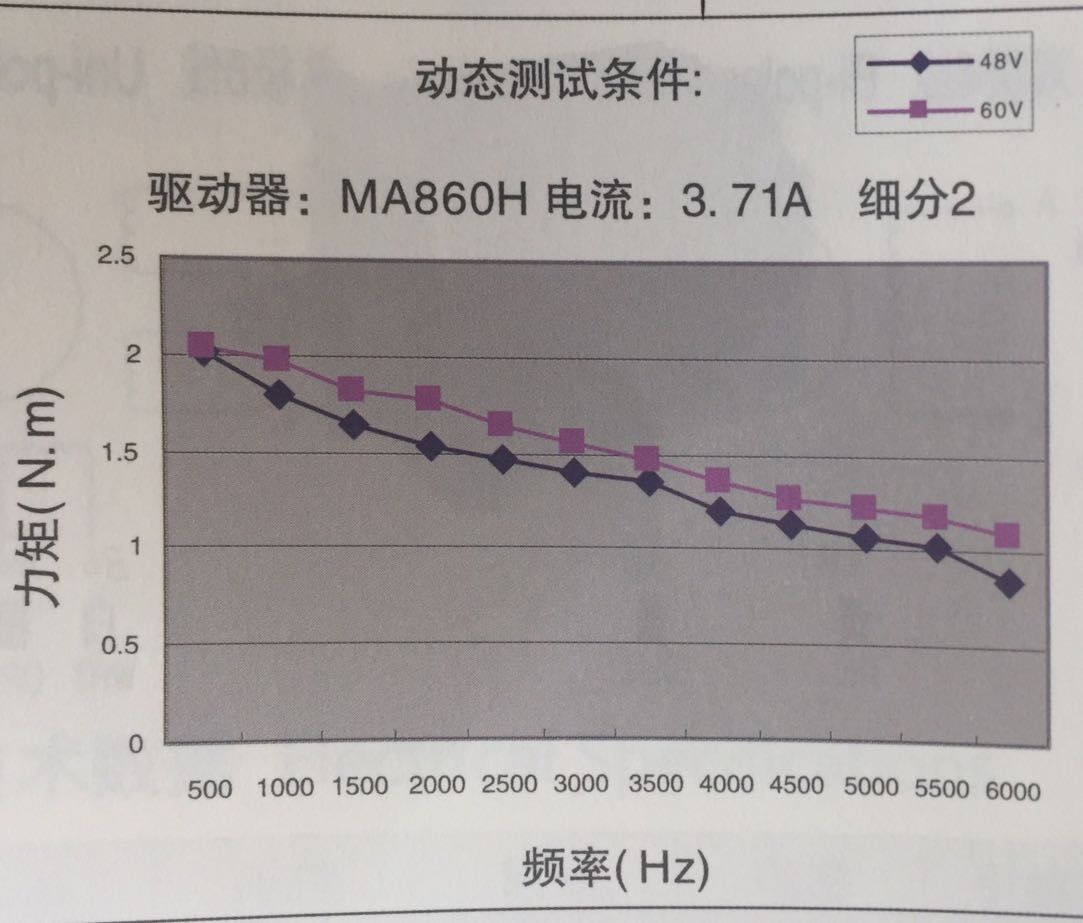

| MODELO: H861-22027 Actual: 3.71a VOLTAJE: 48V/60VDC Paso completo  MODELO: H861-30040 Actual: 5.6a Voltaje: 48 V/60 VDC Paso completo  MODELO: H861-49050 Current: 6.0a Voltaje: 48 V/60 VDC Paso completo  MODELO: H861-64050 Current: 6.0a Voltaje: 48 V/60 VDC Paso completo  MODELO: H601-26042 Current: 4.2a Voltaje: 24 V/36 VDC Paso completo  |
