H862 (86 mm)- 0.9 ° por paso, 4 fase
I.CH
Nema 34 Stepping Motor
| Especificación eléctrica | |||||||||

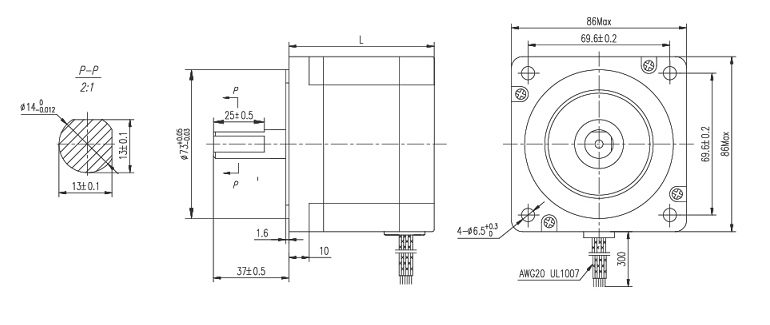

| Modelo | Ángulo de paso (o) | L (mm) | Corriente nominal (a) | Fase Resistencia (Ω) | Fase Inductancia (MH) | Torque de retención (N.CM) | Torque de retención (N.CM) | Guiar Cable (NO.) | Motor Peso ( kg) |
| H862-20040 | 0.9 | 66 | 4.0 | 0.6 | 1.6 | 200 | 5.0 | 8 | 2.0 |
| H862-20050 | 0.9 | 66 | 5.0 | 0.4 | 1.0 | 200 | 5.0 | 8 | 2.0 |
| H862-20027 | 0.9 | 66 | 2.7 | 1.2 | 3.5 | 200 | 5.0 | 8 | 2.0 |
| H862-27040 | 0.9 | 78 | 4.0 | 0.7 | 3.0 | 270 | 5.8 | 8 | 2.5 |
| H862-27050 | 0.9 | 78 | 5.0 | 0.5 | 1.8 | 270 | 5.8 | 8 | 2.5 |
| H862-27027 | 0.9 | 78 | 2.7 | 1.6 | 5.6 | 270 | 5.8 | 8 | 2.5 |
| H862-45040 | 0.9 | 98 | 4.0 | 0.98 | 4.1 | 450 | 8.5 | 8 | 3.0 |
| H862-45050 | 0.9 | 98 | 5.0 | 0.65 | 2.4 | 450 | 8.5 | 8 | 3.0 |
| H862-45027 | 0.9 | 98 | 2.7 | 1.9 | 8.6 | 450 | 8.5 | 8 | 3.0 |
| H862-52040 | 0.9 | 114 | 4.0 | 1.1 | 5.5 | 520 | 11.0 | 8 | 3.5 |
| H862-52050 | 0.9 | 114 | 5.0 | 0.75 | 3.2 | 520 | 11.0 | 8 | 3.5 |
| H862-52027 | 0.9 | 114 | 2.7 | 2.0 | 11.5 | 520 | 11.0 | 8 | 3.5 |
| H862-58040 | 0.9 | 126 | 4.0 | 1.3 | 5.8 | 580 | 16.5 | 8 | 1.8 |
| H862-58050 | 0.9 | 126 | 5.0 | 0.85 | 3.4 | 580 | 16.5 | 8 | 1.8 |
| H862-58027 | 0.9 | 126 | 2.7 | 2.5 | 12.5 | 580 | 16.5 | 8 | 1.8 |
| H862-78040 | 0.9 | 150 | 4.0 | 1.4 | 9.2 | 780 | 20.5 | 8 | 4.2 |
| H862-78050 | 0.9 | 150 | 5.0 | 0.9 | 5.2 | 780 | 20.5 | 8 | 4.2 |
| H862-78027 | 0.9 | 150 | 2.7 | 2.9 | 17.5 | 780 | 20.5 | 8 | 4.2 |

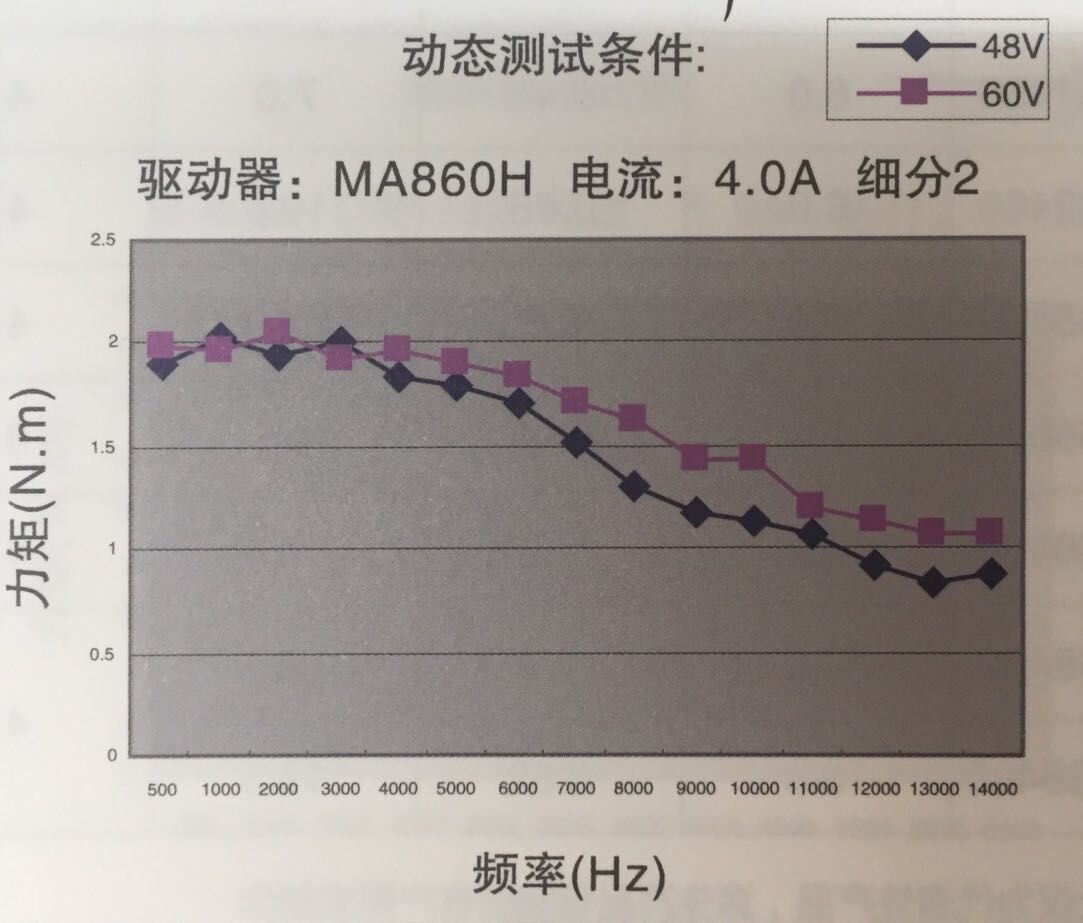

| Curva de torque extraída |

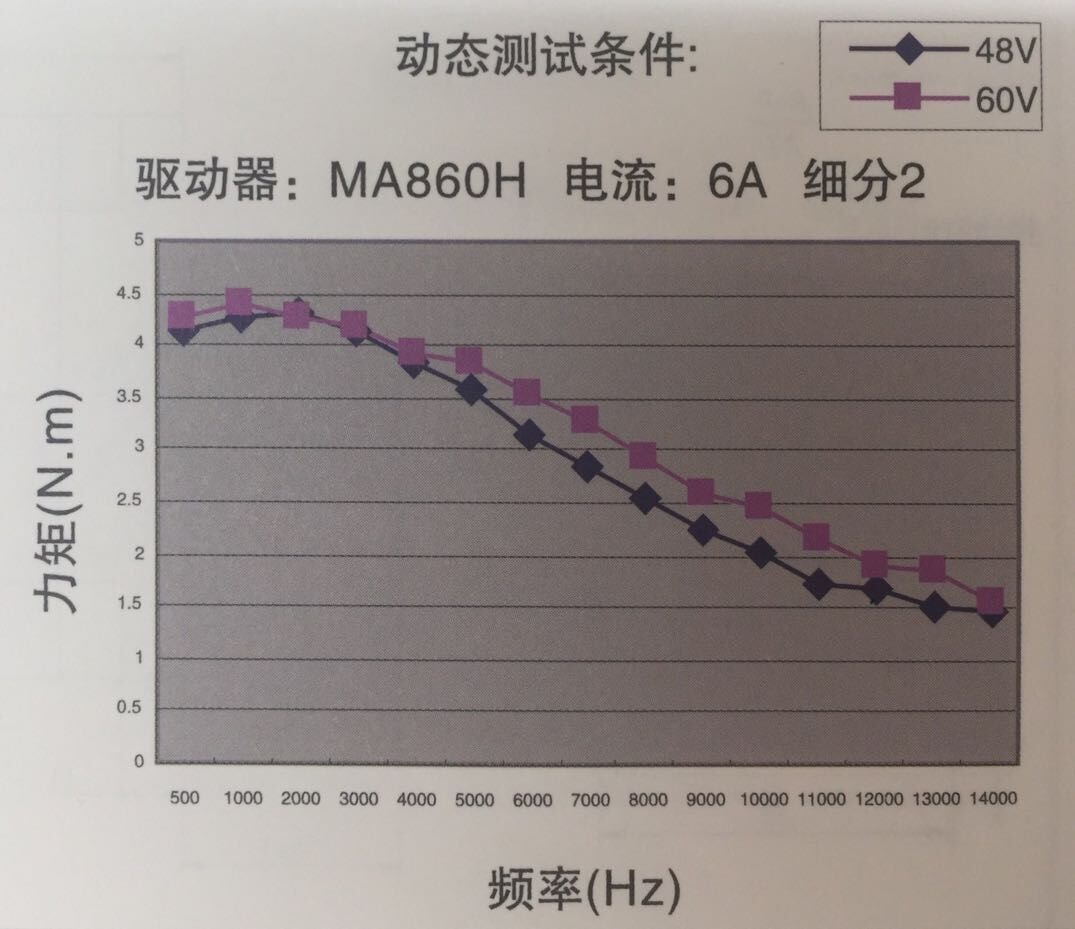

| MODELO: H862-20027 ACTUAL: 4.0a Voltaje: 48V/60VDC Paso completo  MODELO: H862-27040 Current: 4.0a Voltaje: 48 V/60 VDC Paso completo  MODELO: H862-45050 Current: 6.0a Voltaje: 48 V/60 VDC Paso completo  |
| Especificación eléctrica | |||||||||
| Modelo | Ángulo de paso (o) | L (mm) | Corriente nominal (a) | Fase Resistencia (Ω) | Fase Inductancia (MH) | Torque de retención (N.CM) | Torque de retención (N.CM) | Guiar Cable (NO.) | Motor Peso ( kg) |
| H862-20040 | 0.9 | 66 | 4.0 | 0.6 | 1.6 | 200 | 5.0 | 8 | 2.0 |
| H862-20050 | 0.9 | 66 | 5.0 | 0.4 | 1.0 | 200 | 5.0 | 8 | 2.0 |
| H862-20027 | 0.9 | 66 | 2.7 | 1.2 | 3.5 | 200 | 5.0 | 8 | 2.0 |
| H862-27040 | 0.9 | 78 | 4.0 | 0.7 | 3.0 | 270 | 5.8 | 8 | 2.5 |
| H862-27050 | 0.9 | 78 | 5.0 | 0.5 | 1.8 | 270 | 5.8 | 8 | 2.5 |
| H862-27027 | 0.9 | 78 | 2.7 | 1.6 | 5.6 | 270 | 5.8 | 8 | 2.5 |
| H862-45040 | 0.9 | 98 | 4.0 | 0.98 | 4.1 | 450 | 8.5 | 8 | 3.0 |
| H862-45050 | 0.9 | 98 | 5.0 | 0.65 | 2.4 | 450 | 8.5 | 8 | 3.0 |
| H862-45027 | 0.9 | 98 | 2.7 | 1.9 | 8.6 | 450 | 8.5 | 8 | 3.0 |
| H862-52040 | 0.9 | 114 | 4.0 | 1.1 | 5.5 | 520 | 11.0 | 8 | 3.5 |
| H862-52050 | 0.9 | 114 | 5.0 | 0.75 | 3.2 | 520 | 11.0 | 8 | 3.5 |
| H862-52027 | 0.9 | 114 | 2.7 | 2.0 | 11.5 | 520 | 11.0 | 8 | 3.5 |
| H862-58040 | 0.9 | 126 | 4.0 | 1.3 | 5.8 | 580 | 16.5 | 8 | 1.8 |
| H862-58050 | 0.9 | 126 | 5.0 | 0.85 | 3.4 | 580 | 16.5 | 8 | 1.8 |
| H862-58027 | 0.9 | 126 | 2.7 | 2.5 | 12.5 | 580 | 16.5 | 8 | 1.8 |
| H862-78040 | 0.9 | 150 | 4.0 | 1.4 | 9.2 | 780 | 20.5 | 8 | 4.2 |
| H862-78050 | 0.9 | 150 | 5.0 | 0.9 | 5.2 | 780 | 20.5 | 8 | 4.2 |
| H862-78027 | 0.9 | 150 | 2.7 | 2.9 | 17.5 | 780 | 20.5 | 8 | 4.2 |
| Curva de torque extraída |
| MODELO: H862-20027 ACTUAL: 4.0a Voltaje: 48V/60VDC Paso completo MODELO: H862-27040 Current: 4.0a Voltaje: 48 V/60 VDC Paso completo MODELO: H862-45050 Current: 6.0a Voltaje: 48 V/60 VDC Paso completo |
