H601 (60 mm)- 1.8 ° por paso, 2 fase
I.CH

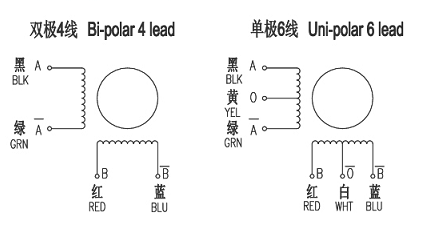

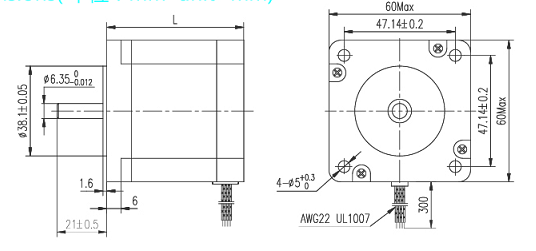

Nema 24 Stepping Motor
| Especificación eléctrica | |||||||||
| Modelo | Ángulo de paso (o) | L (mm) | Corriente nominal (a) | Fase Resistencia (Ω) | Fase Inductancia (MH) | Torque de retención (N.CM) | Torque de retención (N.CM) | Guiar Cable (NO.) | Motor Peso (g) |
| H601-07520 | 1.8 | 41 | 2.0 | 1.2 | 2.5 | 75 | 3.0 | 4 | 500 |
| H601-08525 | 1.8 | 45 | 2.5 | 1.0 | 2.2 | 85 | 3.5 | 4 | 550 |
| H601-14025 | 1.8 | 51 | 2.5 | 1.2 | 3.2 | 140 | 4.0 | 4 | 580 |
| H601-16025 | 1.8 | 56 | 2.5 | 1.3 | 4.2 | 160 | 4.0 | 4 | 580 |
| H601-16030 | 1.8 | 56 | 3.0 | 0.8 | 2.4 | 160 | 4.0 | 4 | 580 |
| H601-16042 | 1.8 | 56 | 4.2 | 0.4 | 1.2 | 160 | 4.0 | 4 | 580 |
| H601-18025 | 1.8 | 64 | 2.5 | 1.5 | 4.5 | 180 | 5.0 | 4 | 850 |
| H601-18030 | 1.8 | 64 | 3.0 | 0.8 | 2.3 | 180 | 5.0 | 4 | 850 |
| H601-18042 | 1.8 | 64 | 4.2 | 0.55 | 1.2 | 180 | 5.0 | 4 | 850 |
| H601-22025 | 1.8 | 76 | 2.5 | 1.8 | 6.5 | 220 | 7.0 | 4 | 1150 |
| H601-22030 | 1.8 | 76 | 3.0 | 1.0 | 3.5 | 220 | 7.0 | 4 | 1150 |
| H601-22042 | 1.8 | 76 | 4.2 | 0.6 | 1.8 | 220 | 7.2 | 4 | 1150 |
| H601-26030 | 1.8 | 90 | 3.0 | 1.4 | 5.5 | 260 | 12 | 4 | 1400 |
| H601-26042 | 1.8 | 90 | 4.2 | 0.8 | 3.0 | 260 | 12 | 4 | 1400 |
| Curva de torque extraída |

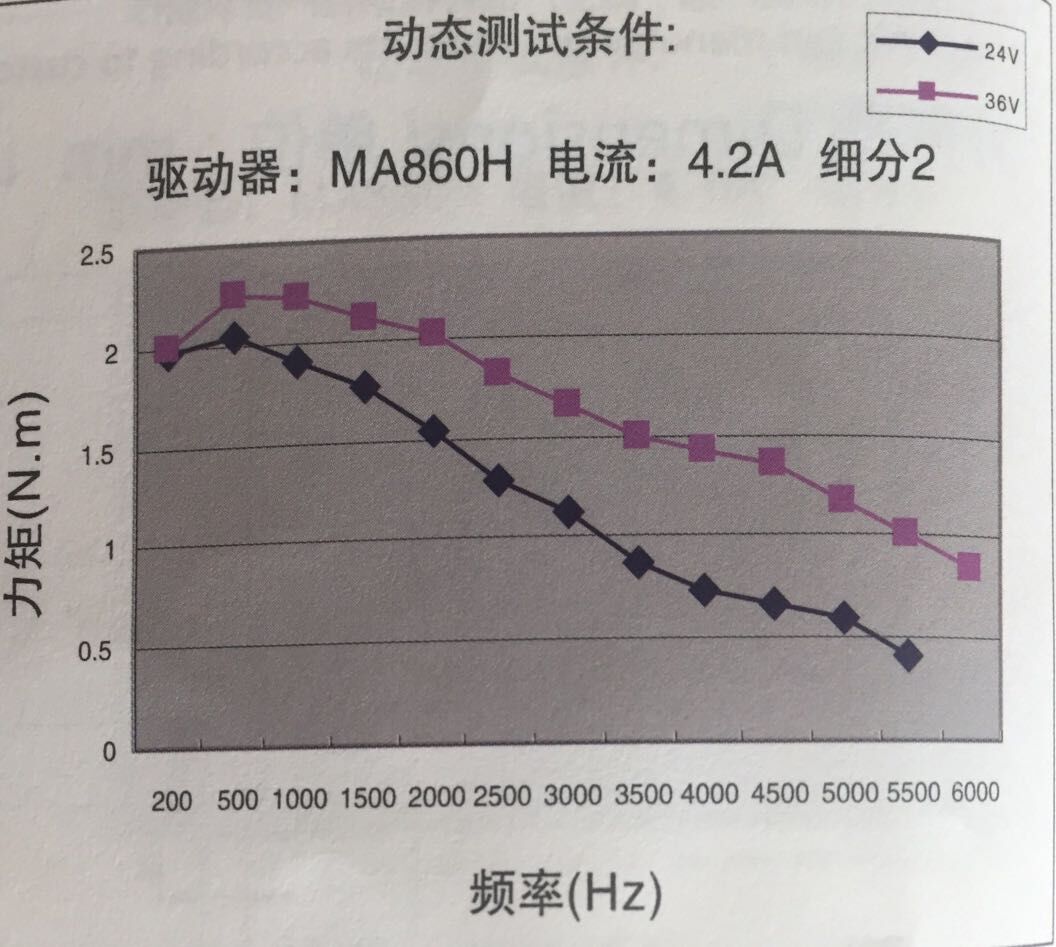

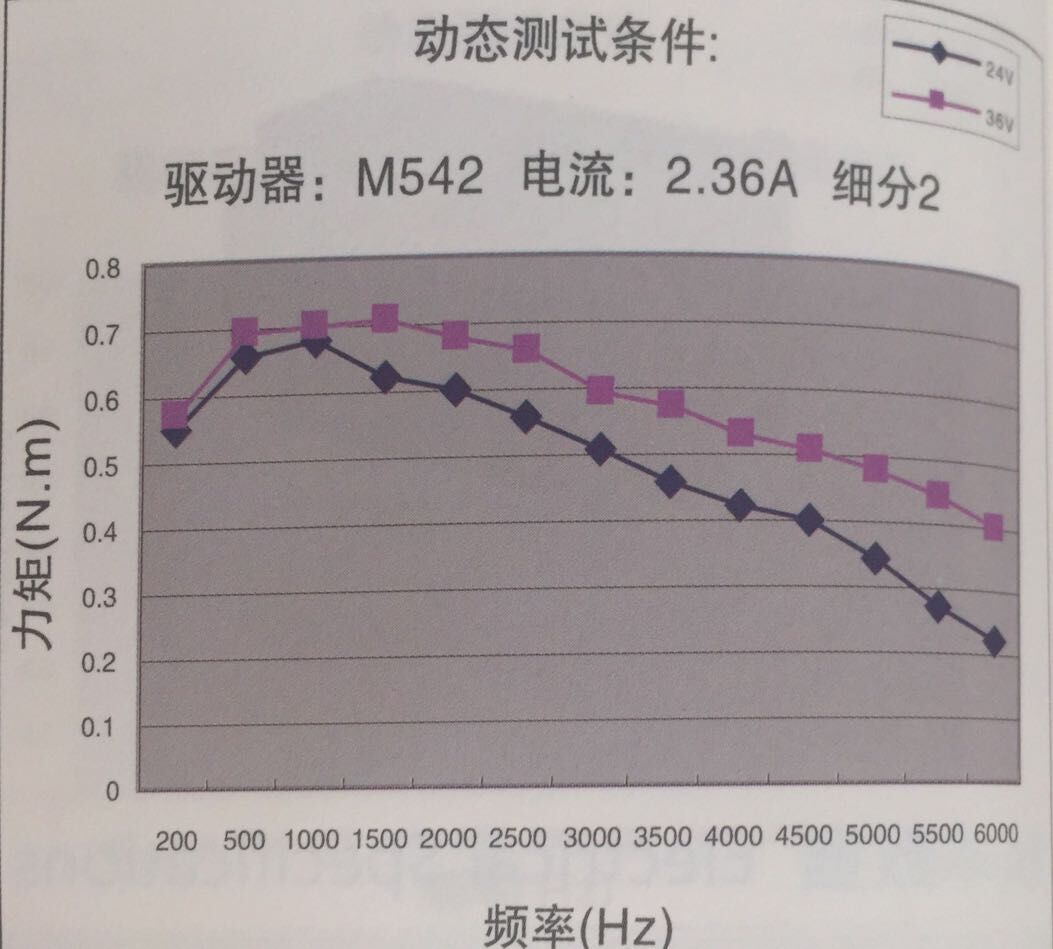

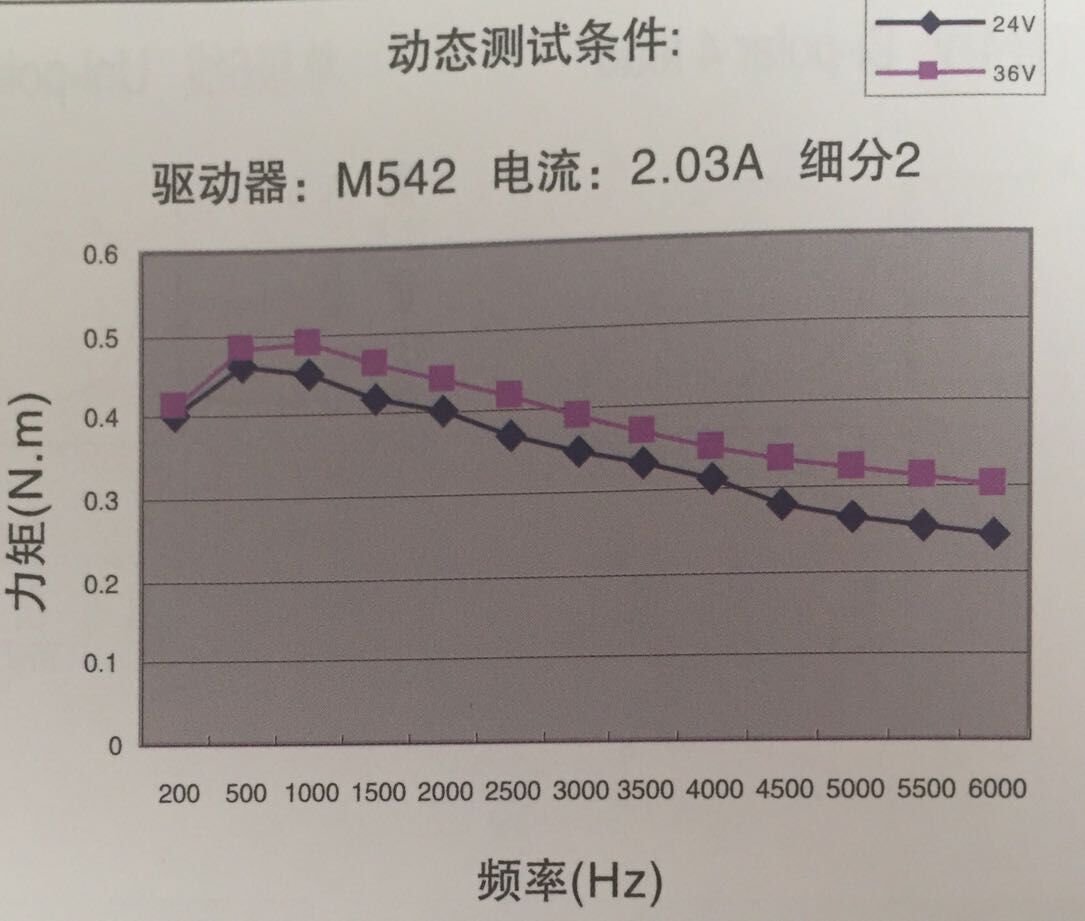

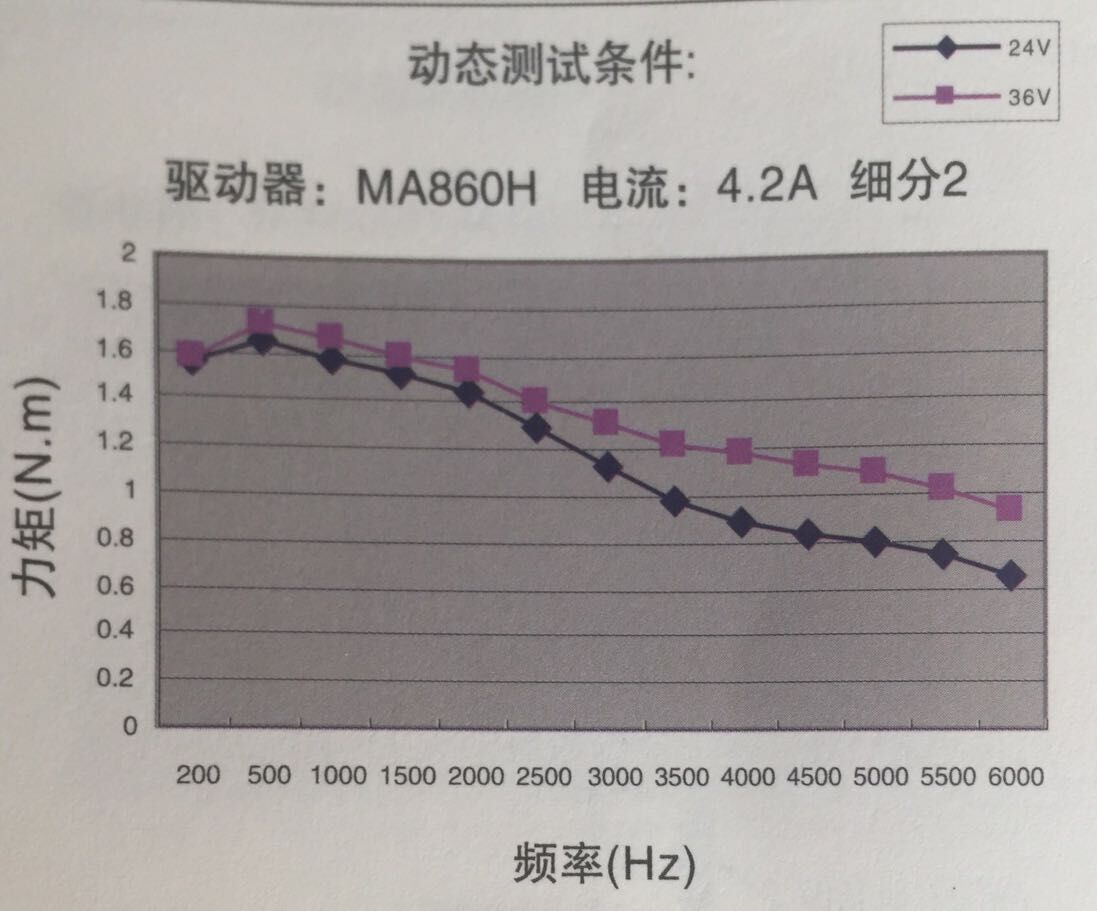

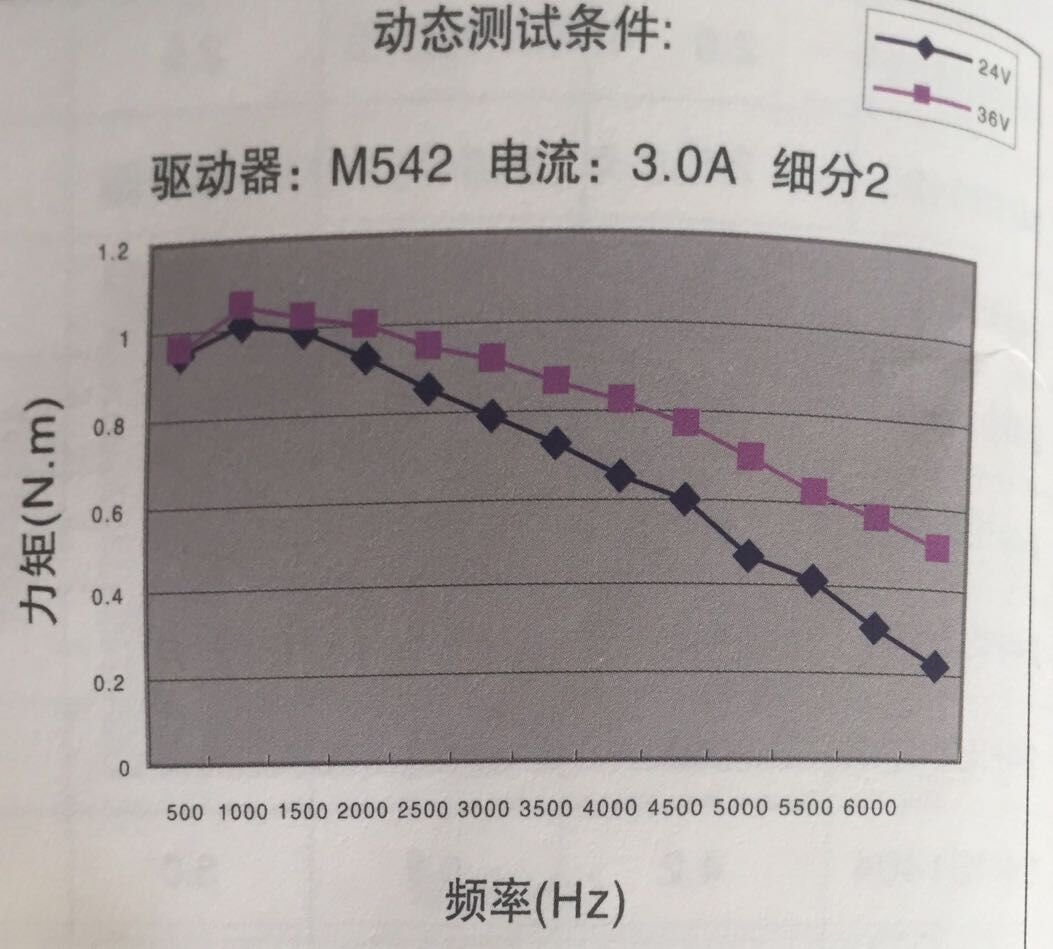

MODELO: H601-07520 Current: 2.03a VOLTAJE: 24V/36VDC Paso completo  MODELO: H601-08525 Actual: 2.36a Voltaje: 24 V/36 VDC Paso completo  MODELO: H601-16030 Current: 3.0a Voltaje: 24 V/36 VDC Paso completo  MODELO: H601-22042 Current: 4.2a Voltaje: 24 V/36 VDC Paso completo  MODELO: H601-26042 Current: 4.2a Voltaje: 24 V/36 VDC Paso completo  |
| Especificación eléctrica | |||||||||
| Modelo | Ángulo de paso (o) | L (mm) | Corriente nominal (a) | Fase Resistencia (Ω) | Fase Inductancia (MH) | Torque de retención (N.CM) | Torque de retención (N.CM) | Guiar Cable (NO.) | Motor Peso (g) |
| H601-07520 | 1.8 | 41 | 2.0 | 1.2 | 2.5 | 75 | 3.0 | 4 | 500 |
| H601-08525 | 1.8 | 45 | 2.5 | 1.0 | 2.2 | 85 | 3.5 | 4 | 550 |
| H601-14025 | 1.8 | 51 | 2.5 | 1.2 | 3.2 | 140 | 4.0 | 4 | 580 |
| H601-16025 | 1.8 | 56 | 2.5 | 1.3 | 4.2 | 160 | 4.0 | 4 | 580 |
| H601-16030 | 1.8 | 56 | 3.0 | 0.8 | 2.4 | 160 | 4.0 | 4 | 580 |
| H601-16042 | 1.8 | 56 | 4.2 | 0.4 | 1.2 | 160 | 4.0 | 4 | 580 |
| H601-18025 | 1.8 | 64 | 2.5 | 1.5 | 4.5 | 180 | 5.0 | 4 | 850 |
| H601-18030 | 1.8 | 64 | 3.0 | 0.8 | 2.3 | 180 | 5.0 | 4 | 850 |
| H601-18042 | 1.8 | 64 | 4.2 | 0.55 | 1.2 | 180 | 5.0 | 4 | 850 |
| H601-22025 | 1.8 | 76 | 2.5 | 1.8 | 6.5 | 220 | 7.0 | 4 | 1150 |
| H601-22030 | 1.8 | 76 | 3.0 | 1.0 | 3.5 | 220 | 7.0 | 4 | 1150 |
| H601-22042 | 1.8 | 76 | 4.2 | 0.6 | 1.8 | 220 | 7.2 | 4 | 1150 |
| H601-26030 | 1.8 | 90 | 3.0 | 1.4 | 5.5 | 260 | 12 | 4 | 1400 |
| H601-26042 | 1.8 | 90 | 4.2 | 0.8 | 3.0 | 260 | 12 | 4 | 1400 |
| Curva de torque extraída |
MODELO: H601-07520 Current: 2.03a VOLTAJE: 24V/36VDC Paso completo MODELO: H601-08525 Actual: 2.36a Voltaje: 24 V/36 VDC Paso completo MODELO: H601-16030 Current: 3.0a Voltaje: 24 V/36 VDC Paso completo MODELO: H601-22042 Current: 4.2a Voltaje: 24 V/36 VDC Paso completo MODELO: H601-26042 Current: 4.2a Voltaje: 24 V/36 VDC Paso completo |
